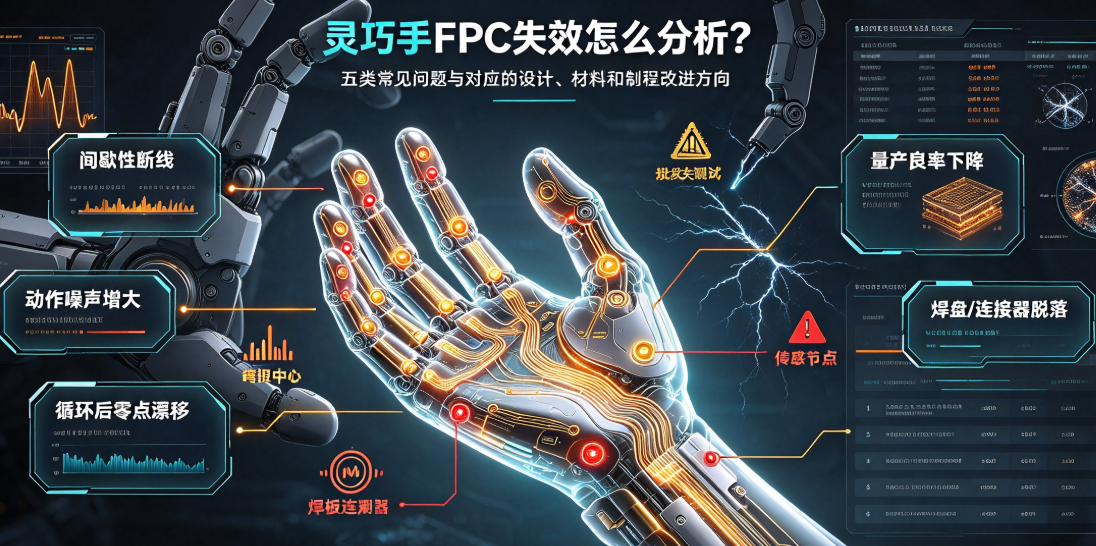

How to Analyze Dexterous-Hand FPC Failures: Five Common Problems and Improvements

8 min read
How to Analyze Dexterous-Hand FPC Failures: Five Common Problems and Improvements

When a dexterous-hand FPC develops open circuits, noise, sensor drift, or assembly problems, the cause is rarely a single process. This article analyzes common symptoms through bend structure, pad stiffening, signal partitioning, material selection, and test methods, then gives an actionable improvement order.

Dexterous-hand FPC failures often occur where motion meets assembly

A dexterous hand performs gripping, pressing, sliding, and posture adjustment while its FPC repeatedly bends in a confined space and carries tactile, position, temperature, and power signals. Looking only at the final defect can be misleading. An open circuit may start at a stiffener edge, sensor drift may come from connector restraint, and pad lifting may result from accumulated assembly tension.

The following troubleshooting logic starts with the observed symptom so engineering and purchasing teams can decide whether to change the design, material, or process first.

Problem 1: Intermittent opens after bend cycling

Check whether breaks cluster at the bend center, near vias, or at stiffener edges. A repeated location usually indicates a stiffness transition or a pinch point in the motion path. Move vias, large pads, and sharp trace turns away from the dynamic center; use rounded corners, gradual width transitions, and adequate flex length. For high-cycle mechanisms, validate the actual bend radius and cycle count instead of relying only on a material supplier's static bend data.

Problem 2: Tactile-signal noise rises when the motor moves

Analog tactile signals are vulnerable to motor-drive, switching-power, and communication noise. Compare noise with the motor stopped and running, then inspect long parallel routing, adjacent connector pins, and ground-return continuity. Separate sensitive sensor traces from noisy drive lines, add ground guards or shielding where needed, and preserve the reference path through the connector region.

Problem 3: Sensor zero drifts after cycling

Drift does not always originate in the sensor. Changes in copper resistance, adhesive stress, stiffener location, or connector contact after bending can shift the baseline. Record resistance, zero output, and temperature before assembly, after assembly, and after the specified cycle count. Correlating the data with the failure location helps distinguish structural stress, circuit change, and calibration issues.

Problem 4: Pads or connector areas lift

The pad area is normally stiffer than the flexible circuit. If a stiffener ends at a highly stressed point, repeated motion concentrates tension along the pad edge. Adjust the stiffener boundary, add rounded transitions, optimize coverlay openings, and control connector restraint. Simply increasing copper thickness can make the area stiffer and shorten dynamic life.

Problem 5: Prototypes pass but mass-production yield falls

Prototype builds may use manually selected material and careful positioning. Mass production introduces material-lot variation, bonding pressure, punching tolerance, and inspection takt. Before ramp-up, lock the material specification, critical process window, stiffener-position tolerance, and electrical-test items. Hongyi Precision combines AOI, electrical testing, and batch traceability with application-based structural reviews to turn failure findings into repeatable production improvements.
