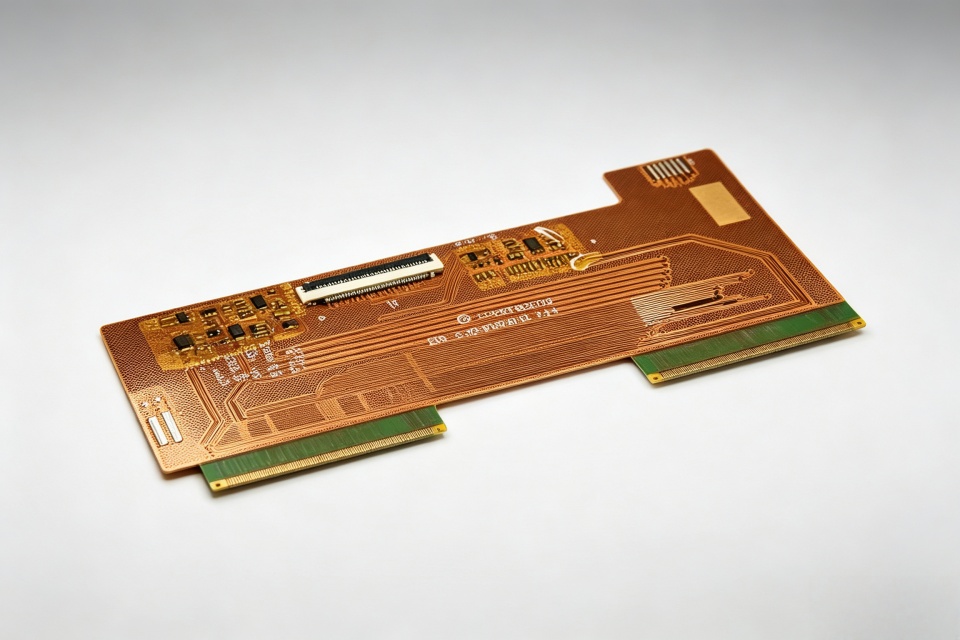

Central Control Display Touch Module FPC
Hongyi Precision mass-produces smart cockpit automotive FPCs, addressing industry challenges including high-frequency bending, thermal cycling, and vehicle vibration. Utilizing high-precision rolled annealed copper foil and automotive-specific conformal coating, the product withstands one million dynamic flex cycles and operates reliably from -40°C to 125°C—ideal for irregular structural layouts and narrow-bezel large displays in smart cockpits.
Key features
Mature Design
Optional shielding layer for electromagnetic interference (EMI) suppression, reducing touch drift and false touches;
Reliable Quality
Excellent temperature and humidity resistance, plus superior flex life;
Compact Layout
Ultra-thin flexible PI substrate enables irregular routing and curved-surface bonding;
Stable Signal Transmission
Precision micro-traces ensure consistent impedance and preserve touch signal integrity;
Specifications
- Layers
- 1–2
- Minimum Line Width/Spacing
- 50/50 µm
- Base Material
- PI 25/50 µm
- Copper Thickness
- 35/18 µm
- Stiffener Options
- PI or stainless steel stiffener
- Outline Tolerance
- ±0.10 mm
- Operating Temperature
- -40°C to 105°C
Typical applications
- Central Control Display
- Central Control Touch Buttons
- In-Vehicle Streaming Media Display
- In-Facility Ceiling-Mounted Display
- In-Vehicle Rearview Mirror
- Rear-Seat Central Control Display
Talk to an engineer
Share your Gerber files or specification and our engineering team will assess manufacturability, advise on process and stack-up, then move your project through sampling and volume production to automotive standards.
